Cylinder Sizing Guide

One of the new features released on the V2 launch is our domestic cylinder sizing guide, this quick help sheet will you navigate creating a report on this feature.

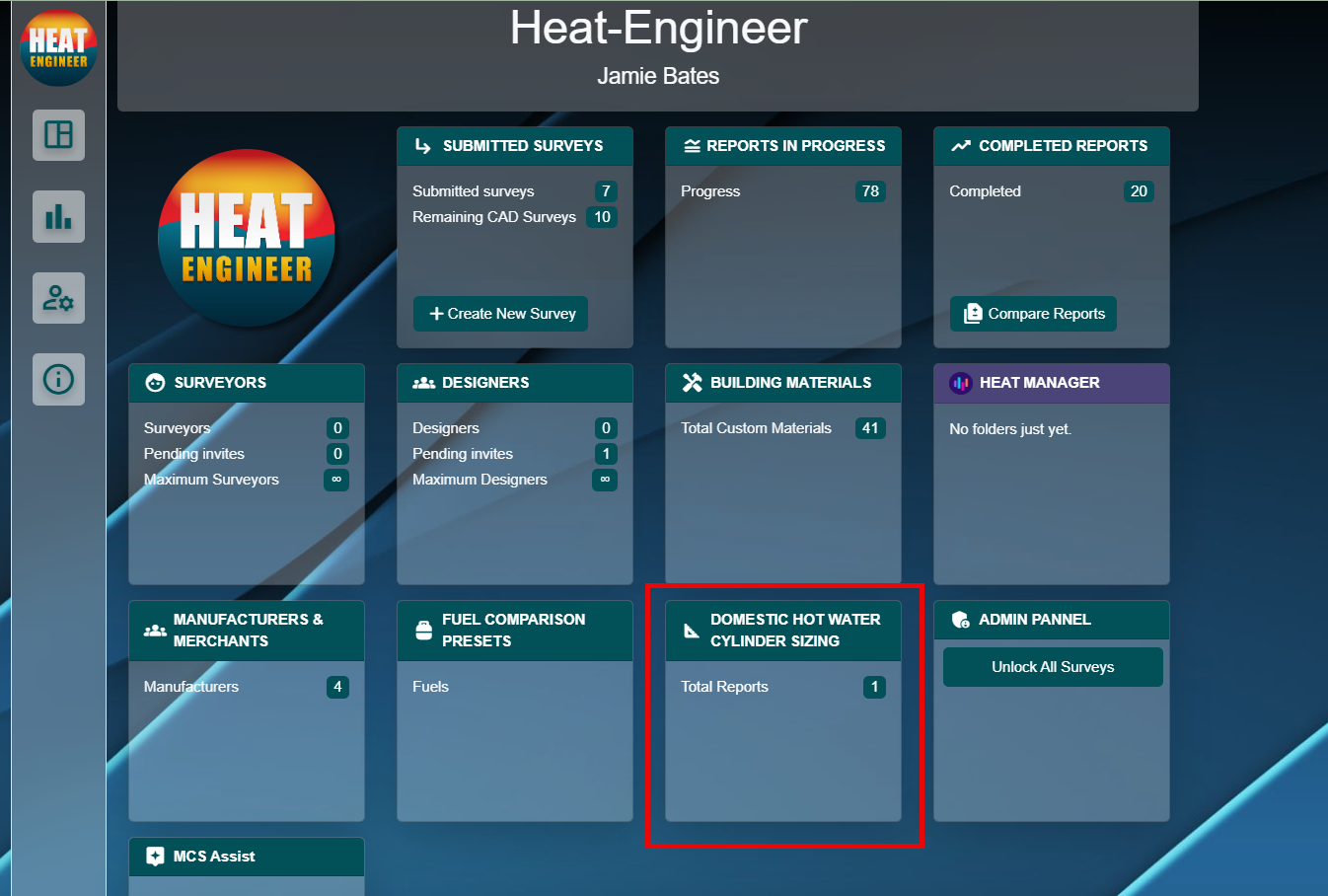

To begin with click the "domestic how water cylinder sizing" tile from your account as below.

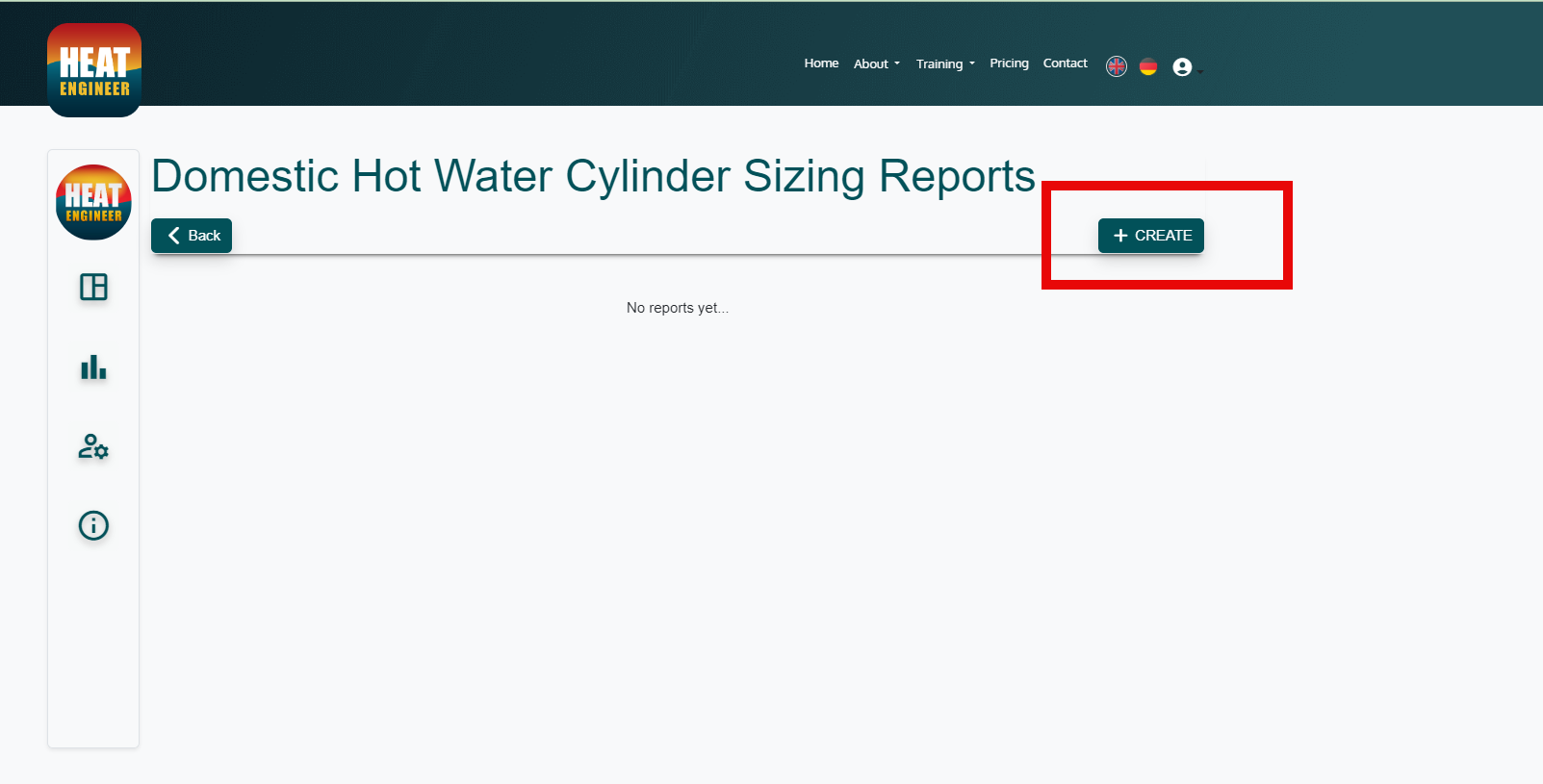

From here click the create button to start a new sizing report.

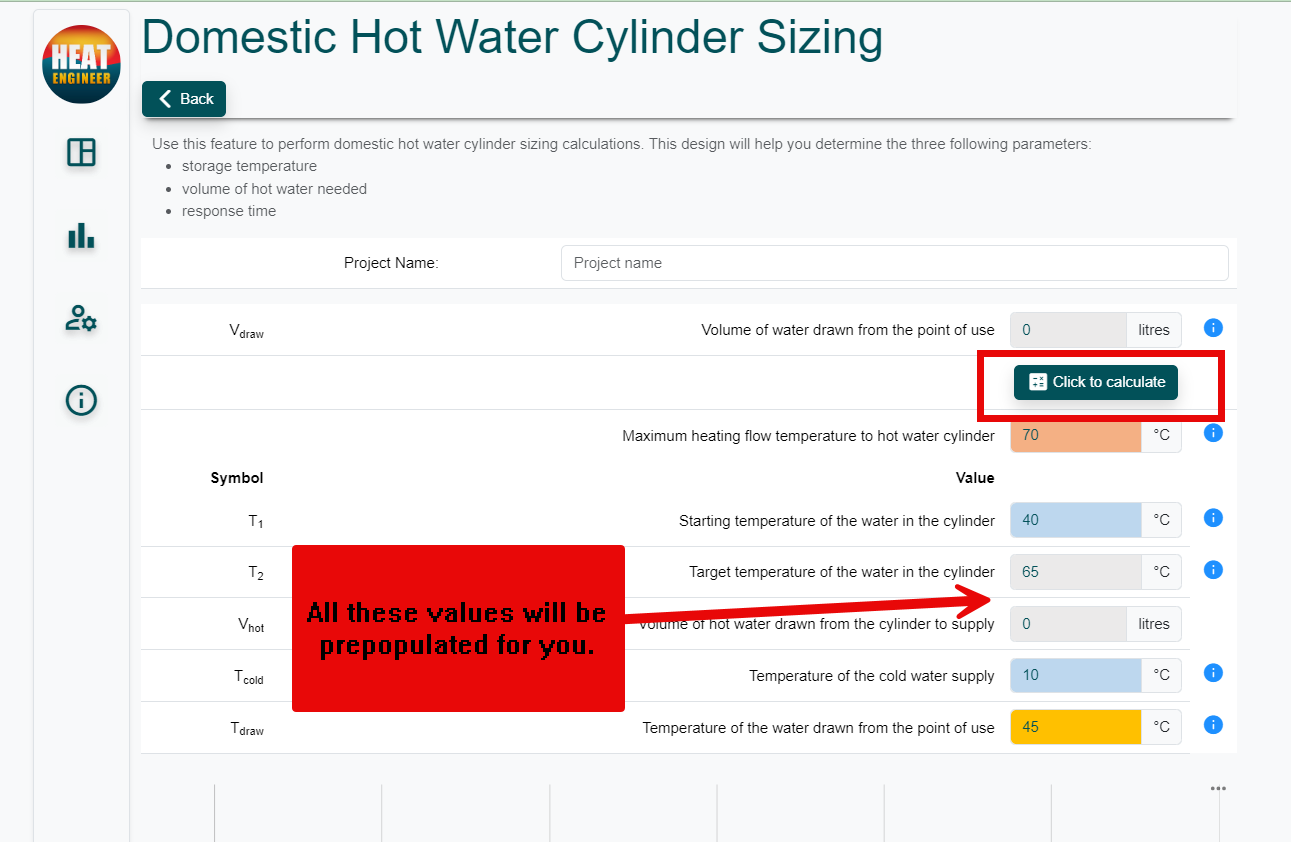

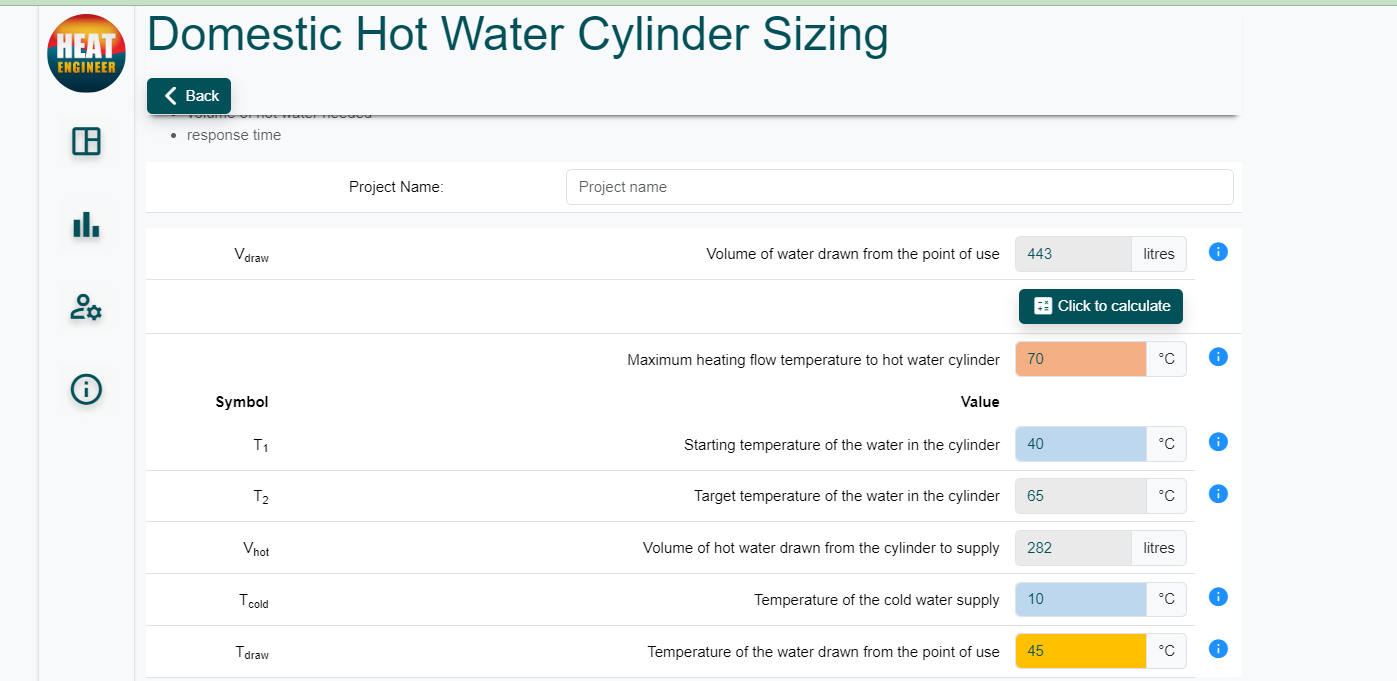

From there you will be presented with the below screen, the values will be pre populated for you but you have the ability to change them if required, once satisfied press the "click to calculate" button.

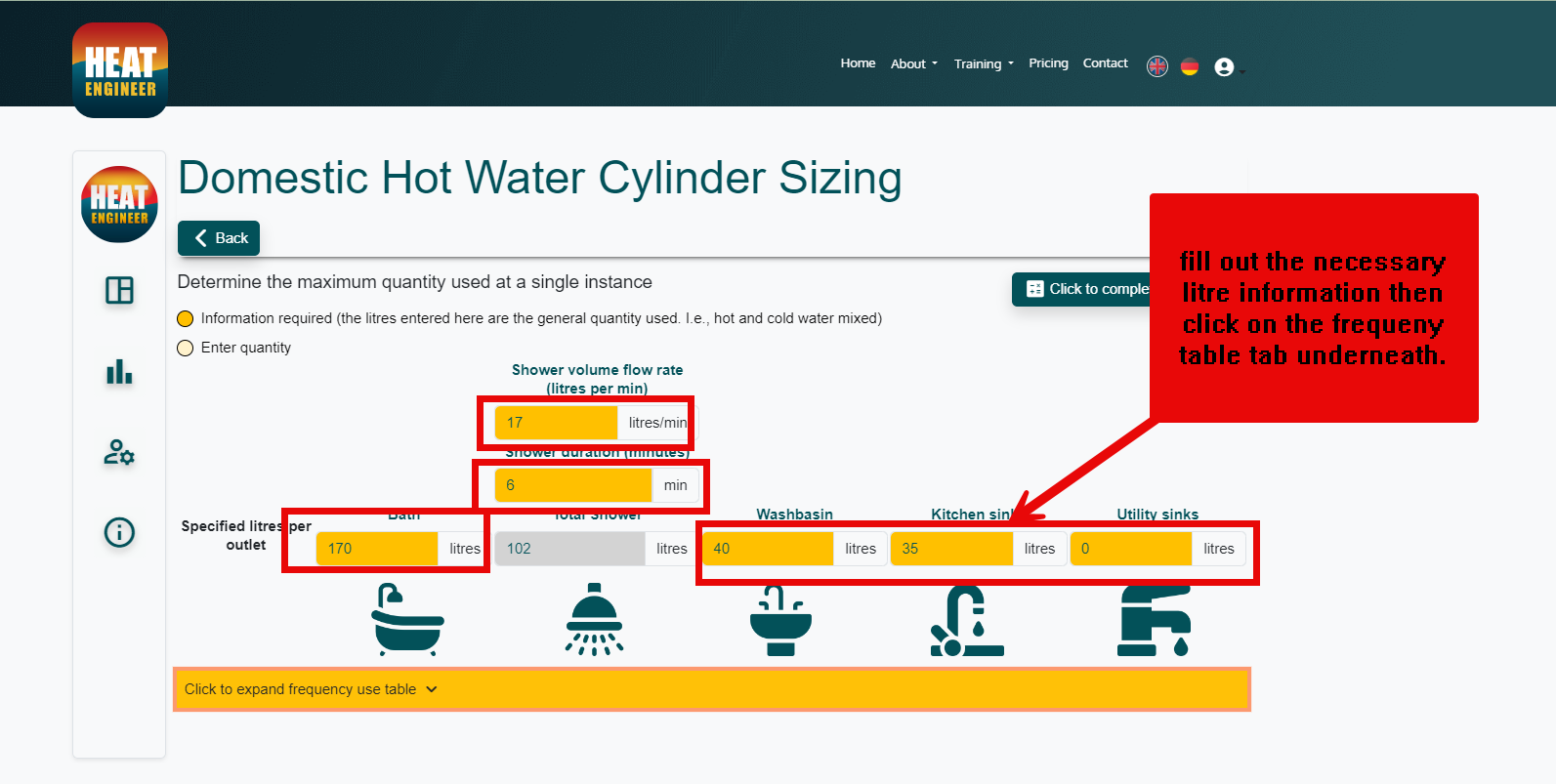

Enter in the maxium litre used at a single instance for each outlet type in the property and click the pulsating bar below the images.

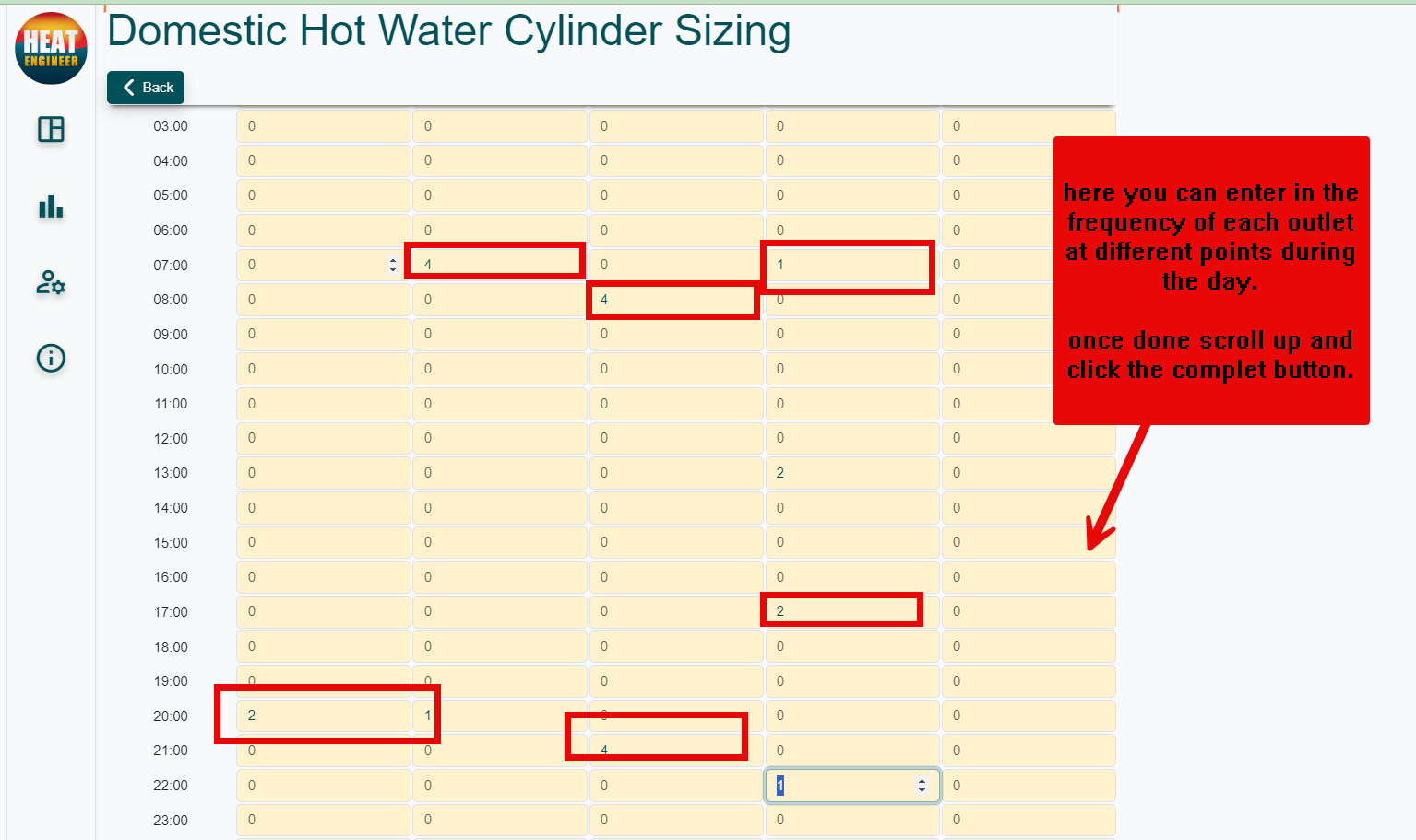

you will then be able to enter the frequency useage of each outlet at different times throughout the day as per the below example, once done scroll back up and press the "click to complete" button

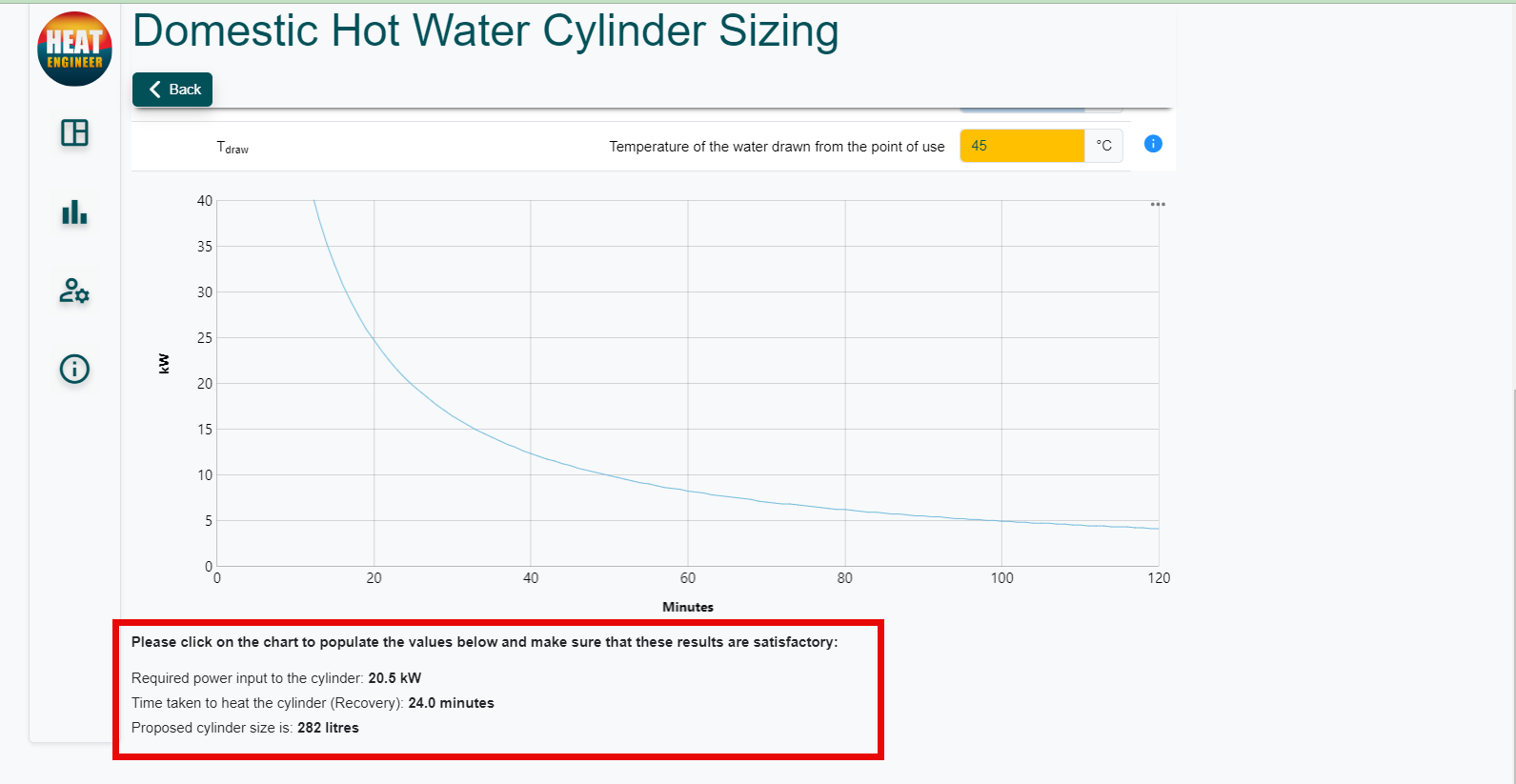

this will then calculate the size of the cylinder that is recommended and from the graph you will be able to select a power input and recovery time from the line.

Once selected, press the back button, this will save the report for you and you will be able to download a printout if required.
